Current location：Home > Products > Plastic Bag Series Equipment > Plastic Printing Machine

Product Center

< >

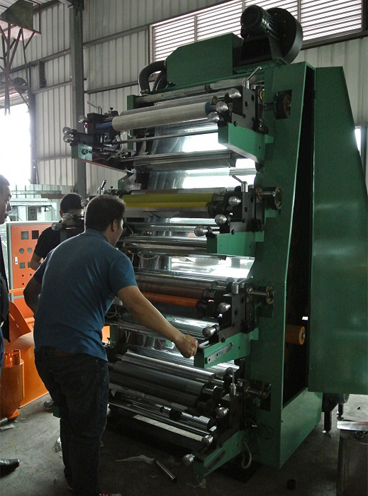

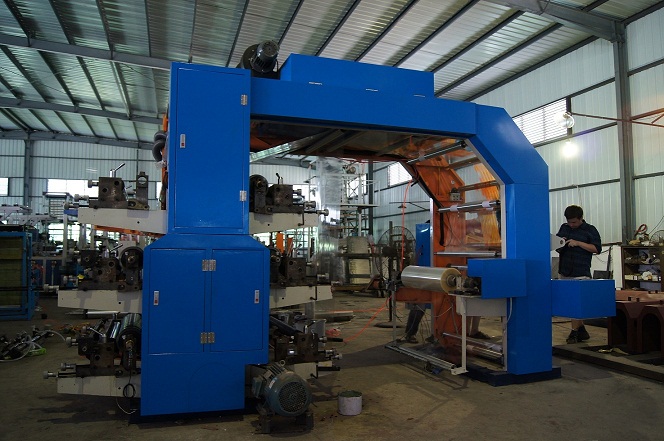

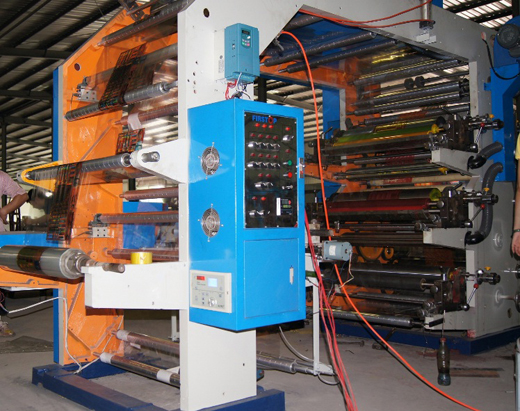

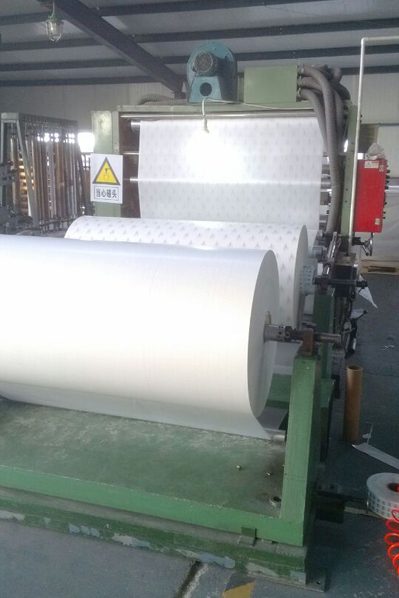

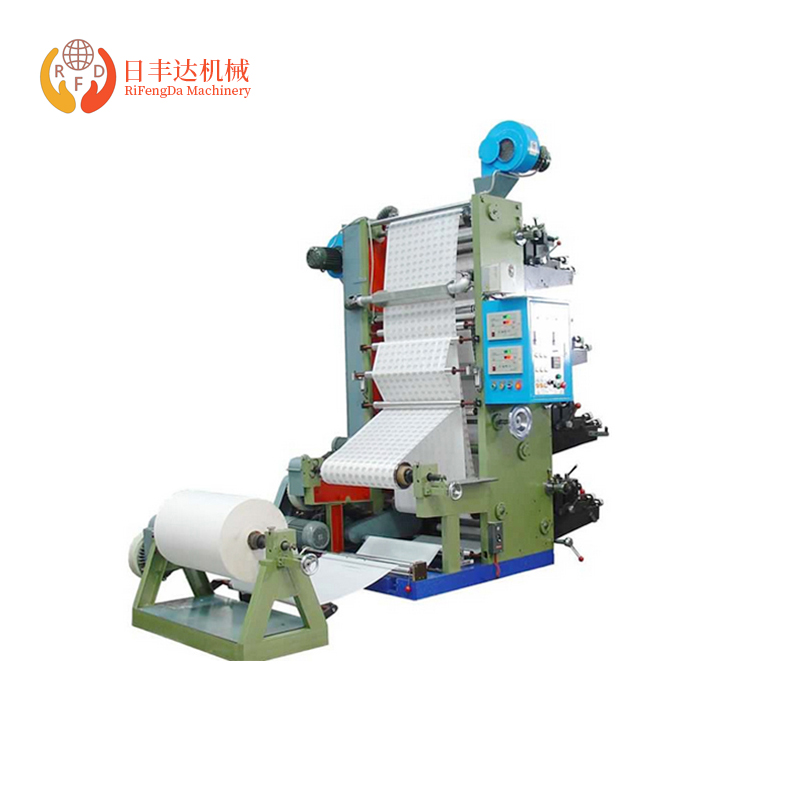

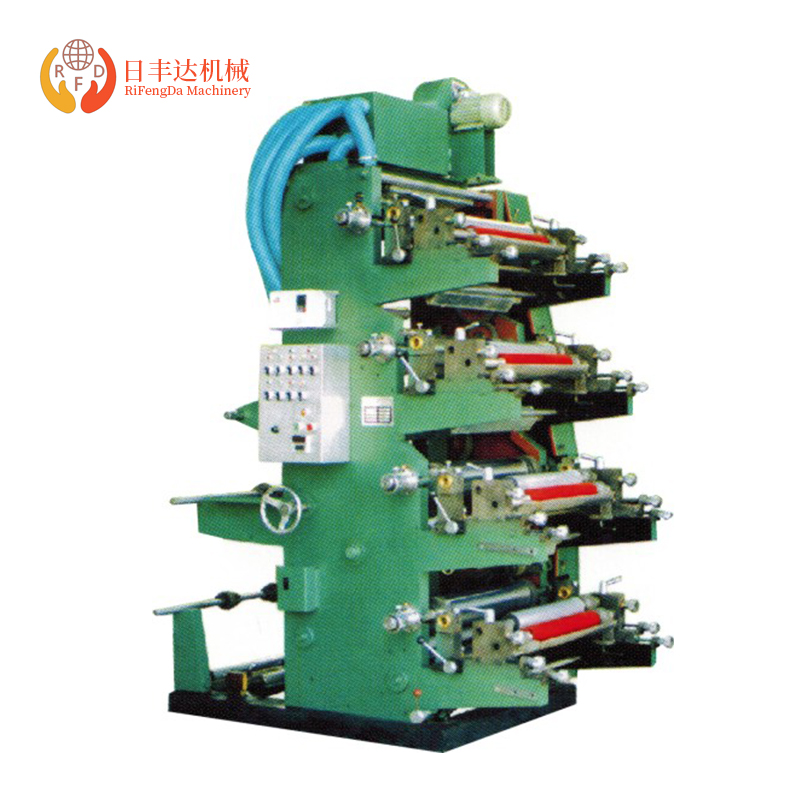

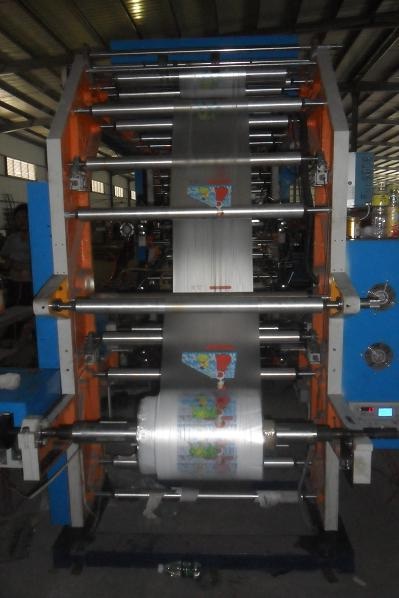

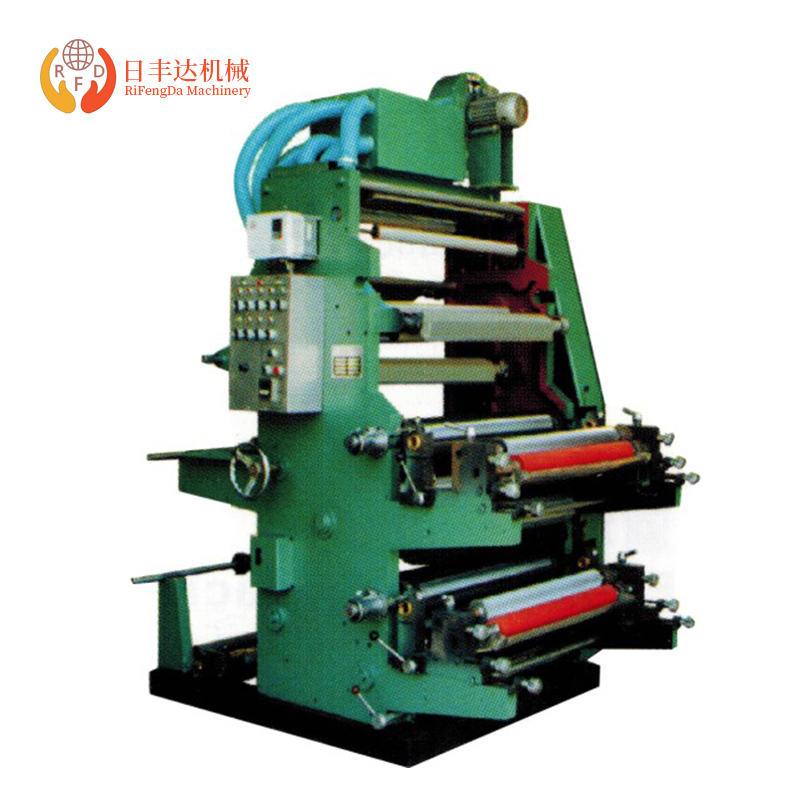

Flexo Printing Machine

Product introduction
Product Usage:
Flexo printing machine is suitable for printing such packing materials as polyethylene,polypropylene bag,cellophane and roll paper,etc. It is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.

Product Features:
1. Accurate registration and clear printing.
2. AC motor driving. V. F. drive for speed regulation. Easy and stable.
3. With auto alarm at film break and digital counter.
4. Easy plate align and registration align.
5. Hot air drying and automatic unwinding. Automatic tension controller + sensor + magnetic brake/ clutch and double lanes printing are optional at request.
6. Ink saving and stable printing.
7. Compact design and workshop saving.
8. It may be used as a common gluing machine.
9. Ceramic anilox is optional at request,independent ink motor,which can prevent ink dry.

Technical Parameters:

No. Description Model Size Print width Print length Print speed

1 2flexo JXJ-2500 20" 500mm 1,000mm 10-70 m/min

2 2flexo JXJ-2650 25" 650mm 1,000mm 10-70 m/min

3 2flexo JXJ-2750 30" 750mm 1,000mm 10-70 m/min

4 2flexo JXJ-21000 40" 1,000mm 1,000mm 10-70 m/min

No. Description Model Size Print width Print length Print speed

1 4flexo JXJ-4500 20" 500 mm 1,000 mm 10-70 m/min

2 4flexo JXJ-4650 25" 650 mm 1,000 mm 10-70 m/min

3 4flexo JXJ-4750 30" 750 mm 1,000 mm 10-70 m/min

4 4flexo JXJ-41000 40" 1,000 mm 1,000 mm 10-70 m/min

No. Description Model Size Print width Print length Print speed

1 6flexo JXG-6500 20" 500mm 1,000mm 10-70 m/min

2 6flexo JXG-6650 25" 650mm 1,000mm 10-70 m/min

3 6flexo JXG-6750 30" 750mm 1,000mm 10-70 m/min

No. Description Model Size Print width Print length Print speed

1 8flexo JXG-8500 20" 500mm 1,000mm 10-70 m/min

2 8flexo JXG-8650 25" 650mm 1,000mm 10-70 m/min

3 8flexo JXG-8750 30" 750mm 1,000mm 10-70 m/min

No. Description Model Size Print width Print length Print speed

1 10flexo JXG-10500 20" 500mm 1000mm 10-70 m/min
