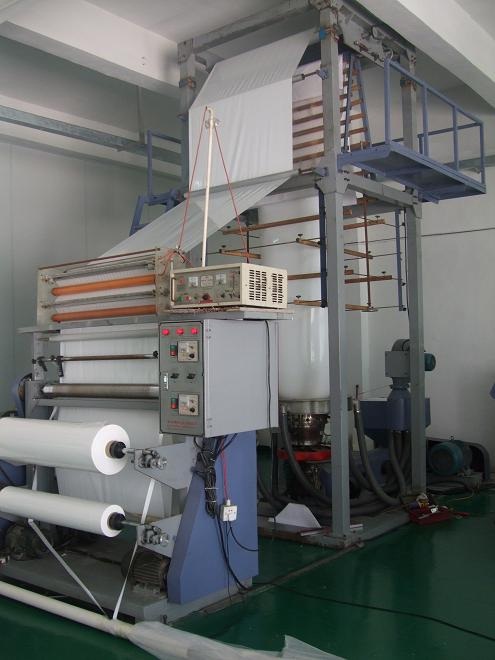

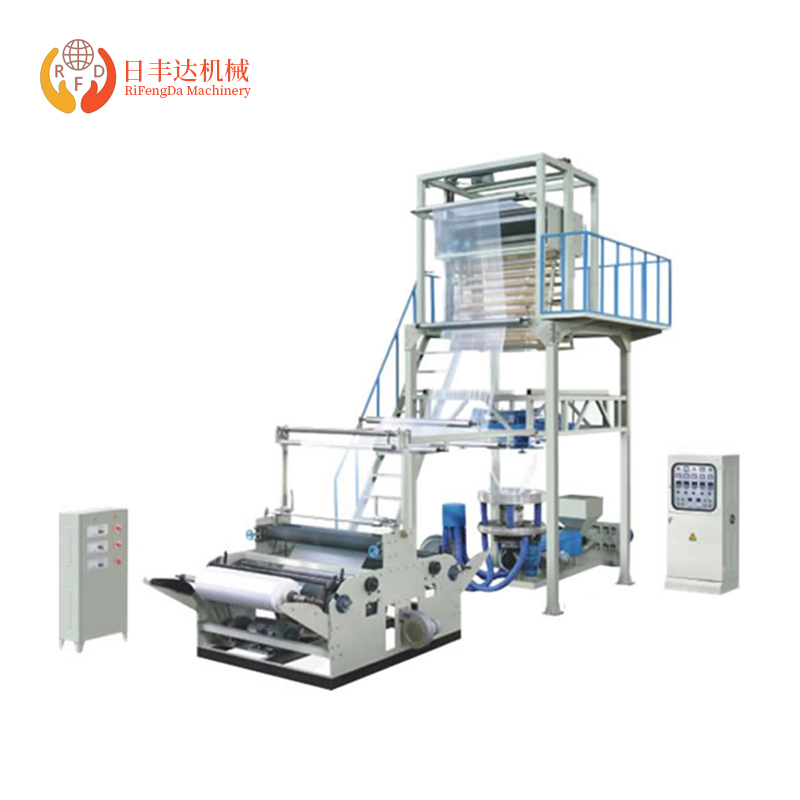

Double-Cutting and Winding Rotary Die Film Blowing Machine
- Product introduction
-
Usage:
The machine is suitable to make tube film or sheet film for packing milk,agriplast film,foodstuff,garment, textile,daily-use articles and industrial products etc.
Product Features:
1. Use specific extruder system,rotary die mould,double cutting and winding rewinder and fast Filter.
2. Adopt automatic temperature regulator,pressure monitor and corana machine.
3. It has an advatage of great thickness,corrosion resistance and endurance etc.
Technical Parameters:Model RFD-55 RFD-65 RFD-75 RFD-80 Screw diameter (mm) Φ55 Φ65 Φ75 Φ80 Ratio of Screw L/D 30:1 Thickness of film(mm)0.01-0.15 Raw Material LLDPE, LDPE, HDPE Max. Output(kg/h) 50 70 90 110 Main Motor(kw) 15 22 30 37 Dimensions (L×W×H)(m) 5×2.6×3.8 5.5×2.8×4 6.5×3×5 7×4×7.4 Weight(T) 2.5 3.5 4 5.5
