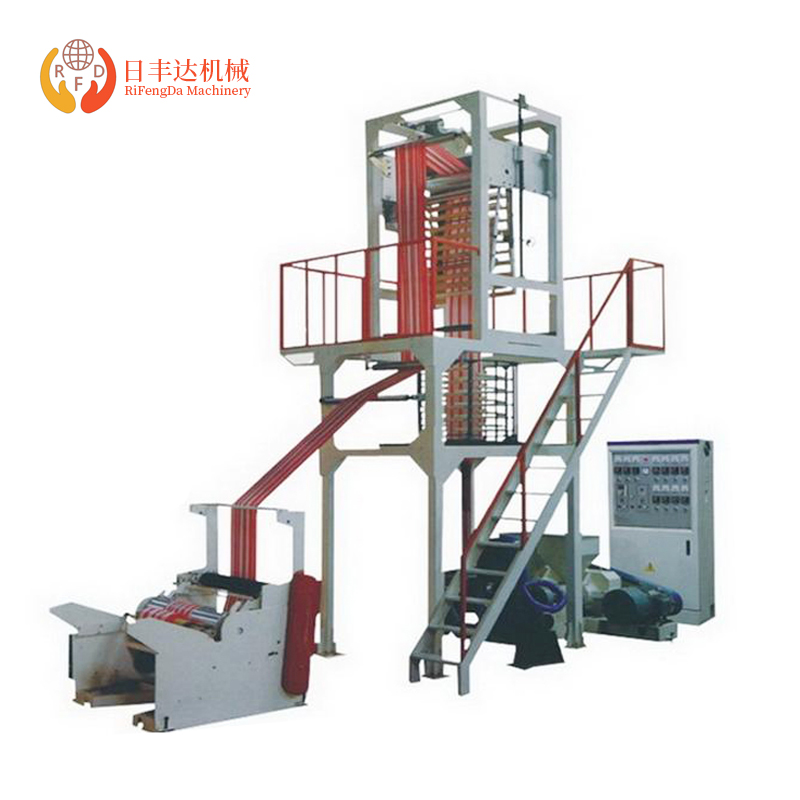

Double Color Triped Film Blowing Machine
- Product introduction
-
Usage:
It is used for blowing the various plastic film of low density polyethylene(LDPE),high density polythlene(HDPE)and liner low density polyet-hylene(LLDPE)etc,Which are widely used for packing food,fruit,garments,textile,barbage bag and vestbag other civil and industrial products,etc and for vest bag.
Product Features:
1. Screw and barrel is made from 38CrMoAlA,nitriding.

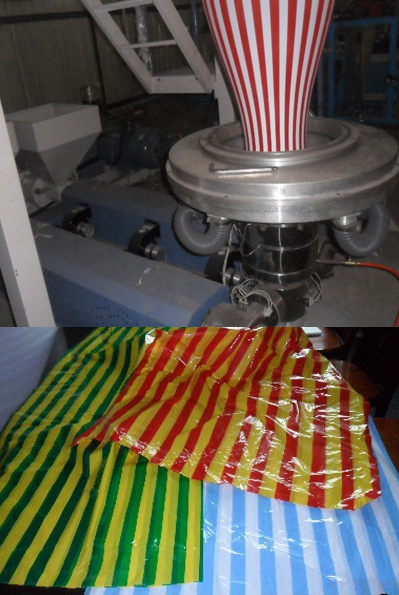

2. two extruders with one die,the die employed specific construction,with different colour master batch,this machine can make different colour bar film.
3. labyrinth air ring,which can make air uniformity.
4. Torque motor for winding.
Technical Parameters:Model RFD-40×2 RFD-50×2 RFD-65x2 Screw Diameter(mm) 45×2 55×2 65x2 Screw RatioL/D 30:1 30:1 30:1 Screw Speed(r/min)) 10-100 10-100 10-100 Power of Main Motor(kw) 11x2 15x2 22x2 Max.Extrusion Ouput(kg/h) 60 80 110 Single-side Thickness of Film(mm) 0.009-0.15 0.009-0.15 0.009-0.15 Max.Folding Width of Film(mm) 600 900 1100 Total Power(kw) 48 65 82 Weight(kg) 3200 3800 4200 Dimensions(L×W×H)(mm) 5000×2800×3800 5500×3000×4000 5500x3200x4500
